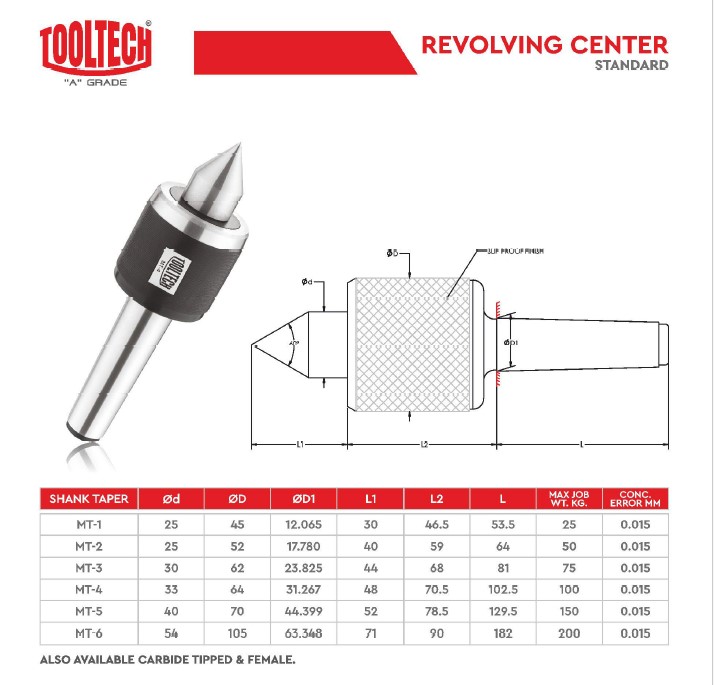

The Revolving Center Standard includes models MT-1 through MT-6, with shank tapers ranging from 25 mm to 54 mm and outer diameters from 45 mm to 105 mm, supporting maximum job weights from 25 kg to 200 kg, and maintaining a concentric error of 0.015 mm across all models.
Download Catalogue
The Revolving Center Heavy Duty series includes models MT-3 to MT-6, with shank tapers from 33 mm to 65 mm and outer diameters from 68 mm to 122 mm, supporting maximum job weights from 350 kg to 2000 kg, and maintaining a concentric error of 0.015 mm across all models.
Download Catalogue

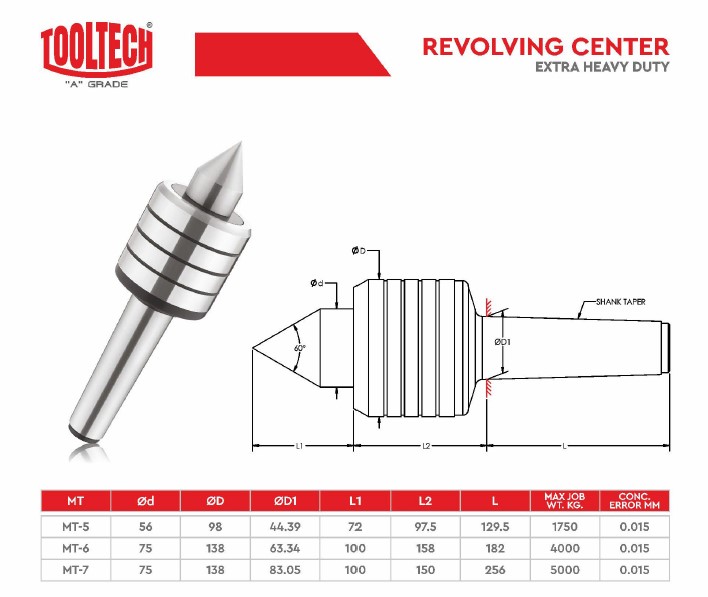

The Revolving Center Extra Heavy Duty models include MT-5 through MT-7, designed for the most demanding machining applications. The MT-5 features a 56 mm shank taper and a 98 mm diameter, supporting up to 1750 kg, with a concentric error of 0.015 mm.
Download Catalogue

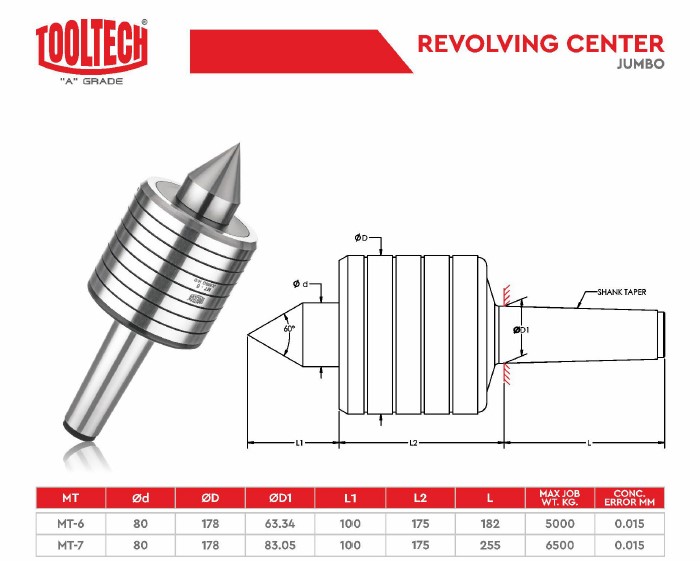

The Revolving Center Jumbo models, MT-6 and MT-7, are engineered for extremely heavy-duty applications. The MT-6 features an 80 mm shank taper and a 178 mm diameter, supporting up to 5000 kg with a concentric error of 0.015 mm.
Download Catalogue
The Revolving Center CNC - High Speed Stub Point models include MT-3 to MT-6, designed for precise high-speed machining. The MT-3 has a 25 mm shank taper and 58 mm diameter, supporting up to 500 kg with a concentric error of 0.005 mm and 5000 RPM.
Download Catalogue

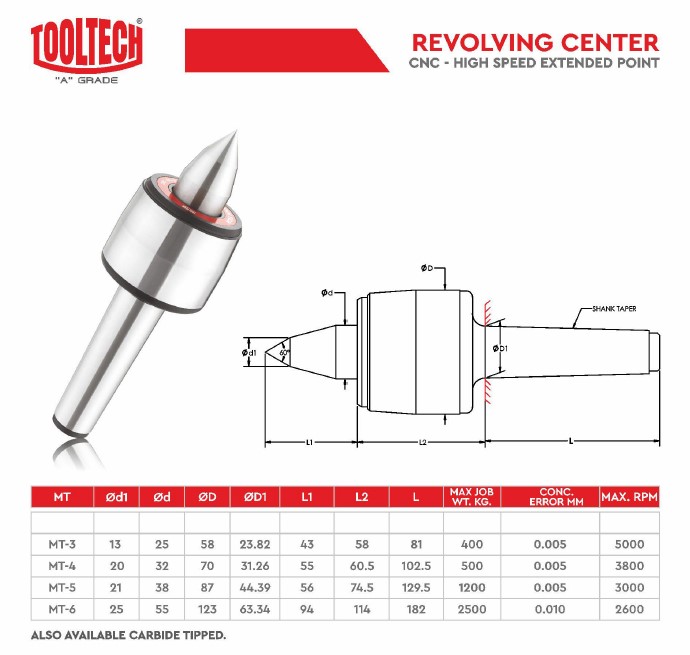

The Revolving Center CNC - High Speed Extended Point models include MT-3 through MT-6. The MT-3 has a 13 mm Ød1, 25 mm Ød, and 58 mm ØD, supporting up to 400 kg with a concentric error of 0.005 mm and a maximum RPM of 5000.
Download Catalogue

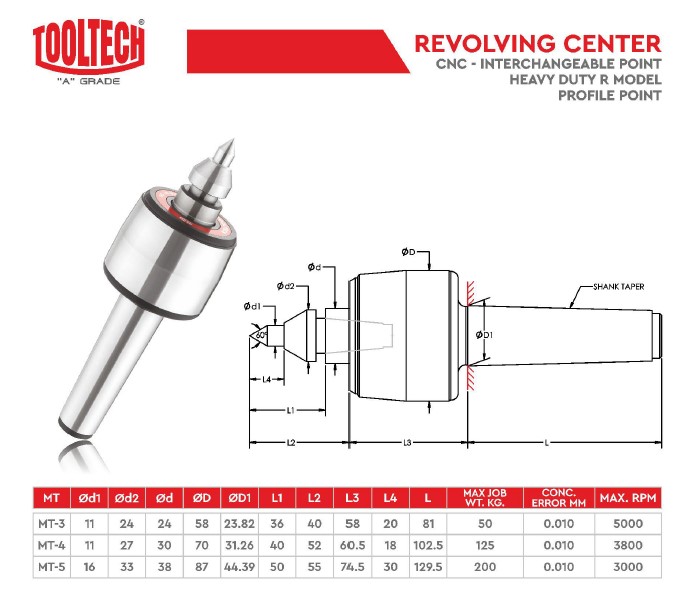

The Revolving Center CNC - Interchangeable Point Heavy Duty R Model Profile Point series includes MT-3 to MT-5. The MT-3 features an 11 mm Ød1, 24 mm Ød2, and 24 mm Ød, with a 58 mm ØD and 23.82 mm ØD1, supporting up to 50 kg with a concentric error of 0.010 mm and a maximum RPM of 5000.
Download Catalogue

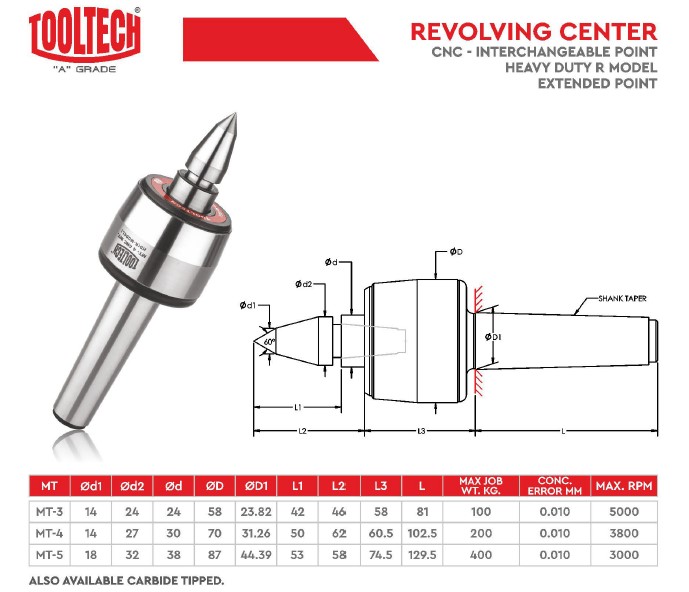

The Revolving Center CNC - Interchangeable Point Heavy Duty R Model Extended Point series includes MT-3 to MT-5. The MT-3 has a 14 mm Ød1, 24 mm Ød2, and 24 mm Ød, with a 58 mm ØD and 23.82 mm ØD1, supporting up to 100 kg with a concentric error of 0.010 mm and a maximum RPM of 5000.
Download Catalogue

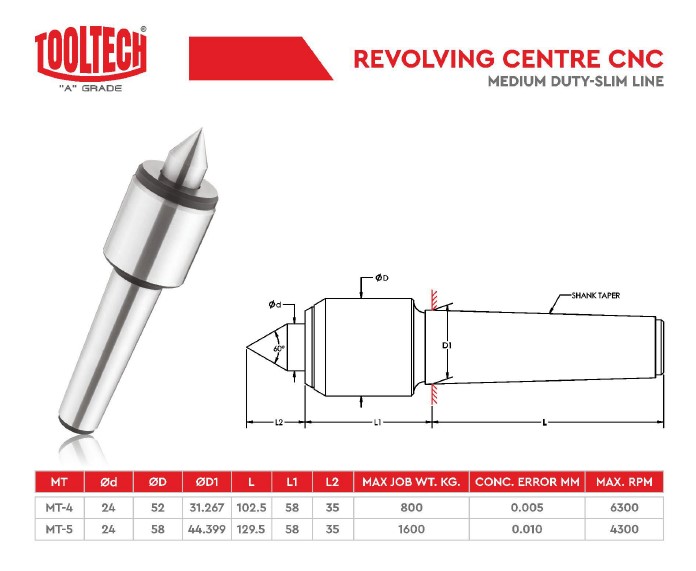

The Medium Duty-Slim Line offers sizes MT-4 and MT-5, with job weights of 800 kg and 1600 kg respectively. MT-4 supports a max RPM of 6300, while MT-5 reaches 4300 RPM. Both ensure precision with concentric errors ranging from 0.005 mm to 0.010 mm.
Download Catalogue
The Revolving Center CNC - Interchangeable Point Heavy Duty R Model Stub Point series includes MT-3 to MT-5. The MT-3 features an 11 mm Ød1, 24 mm Ød2, and 24 mm Ød, with a 58 mm ØD and 23.82 mm ØD1, supporting up to 50 kg with a concentric error of 0.010 mm and a maximum RPM of 5000.
